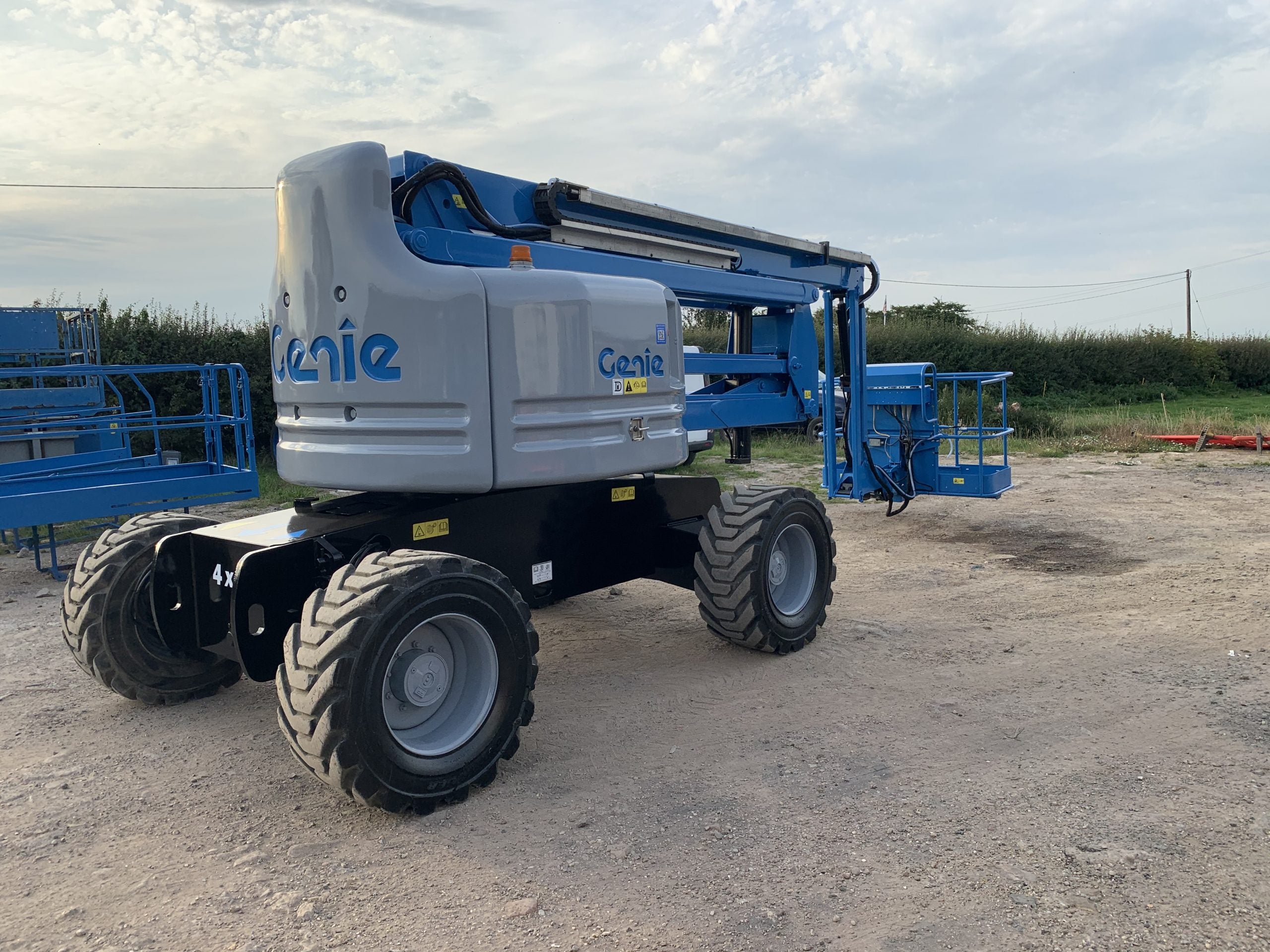

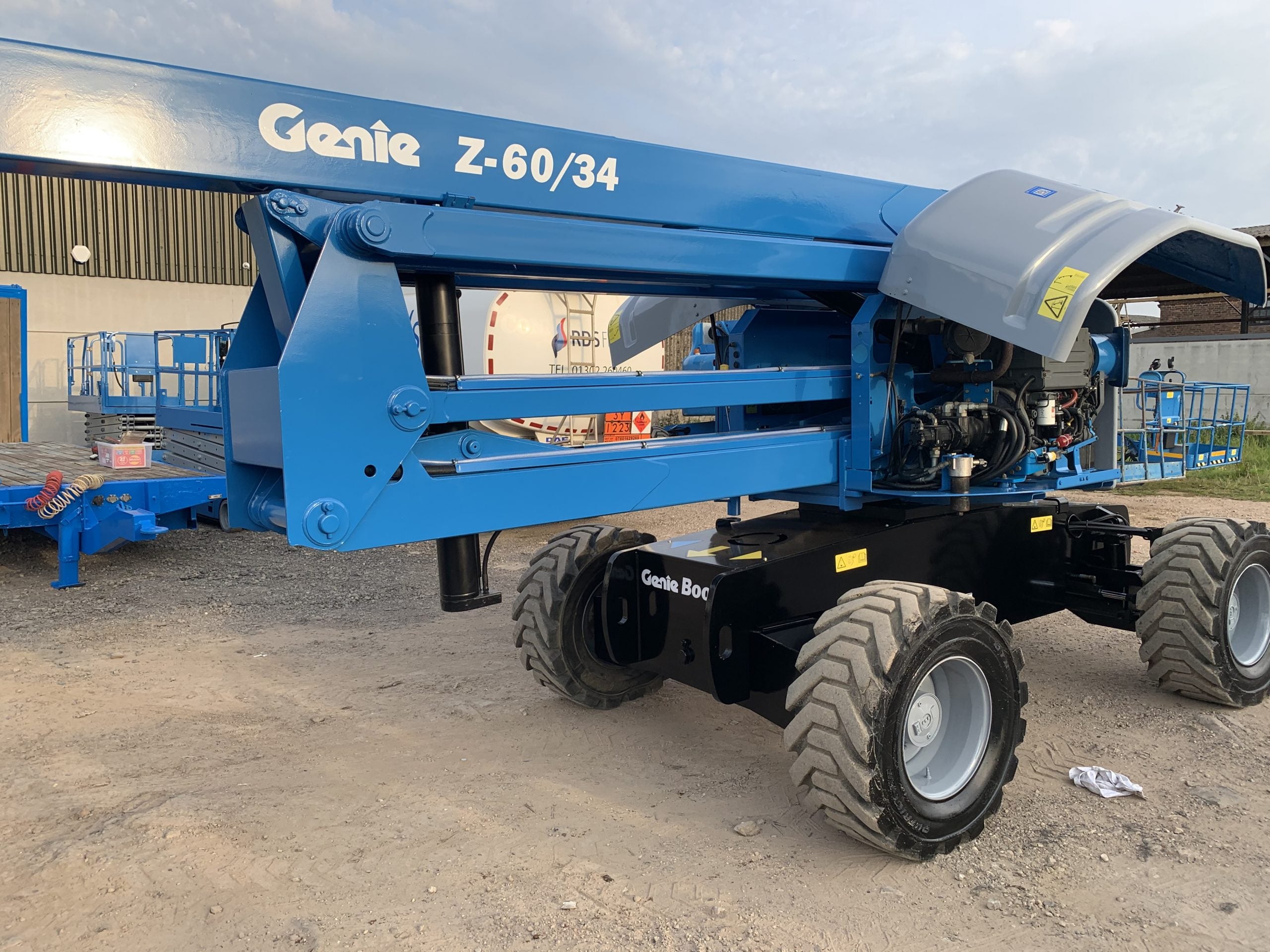

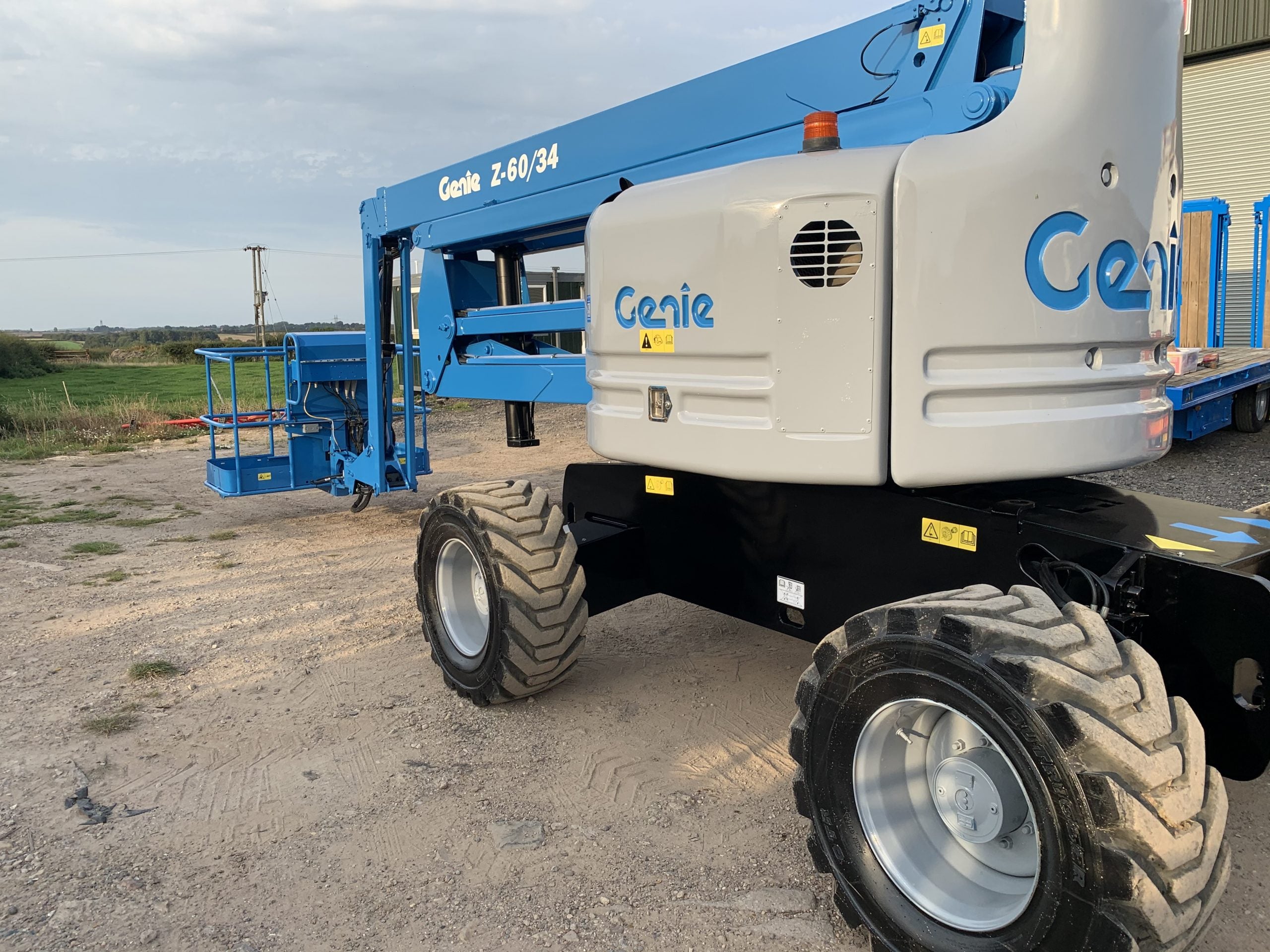

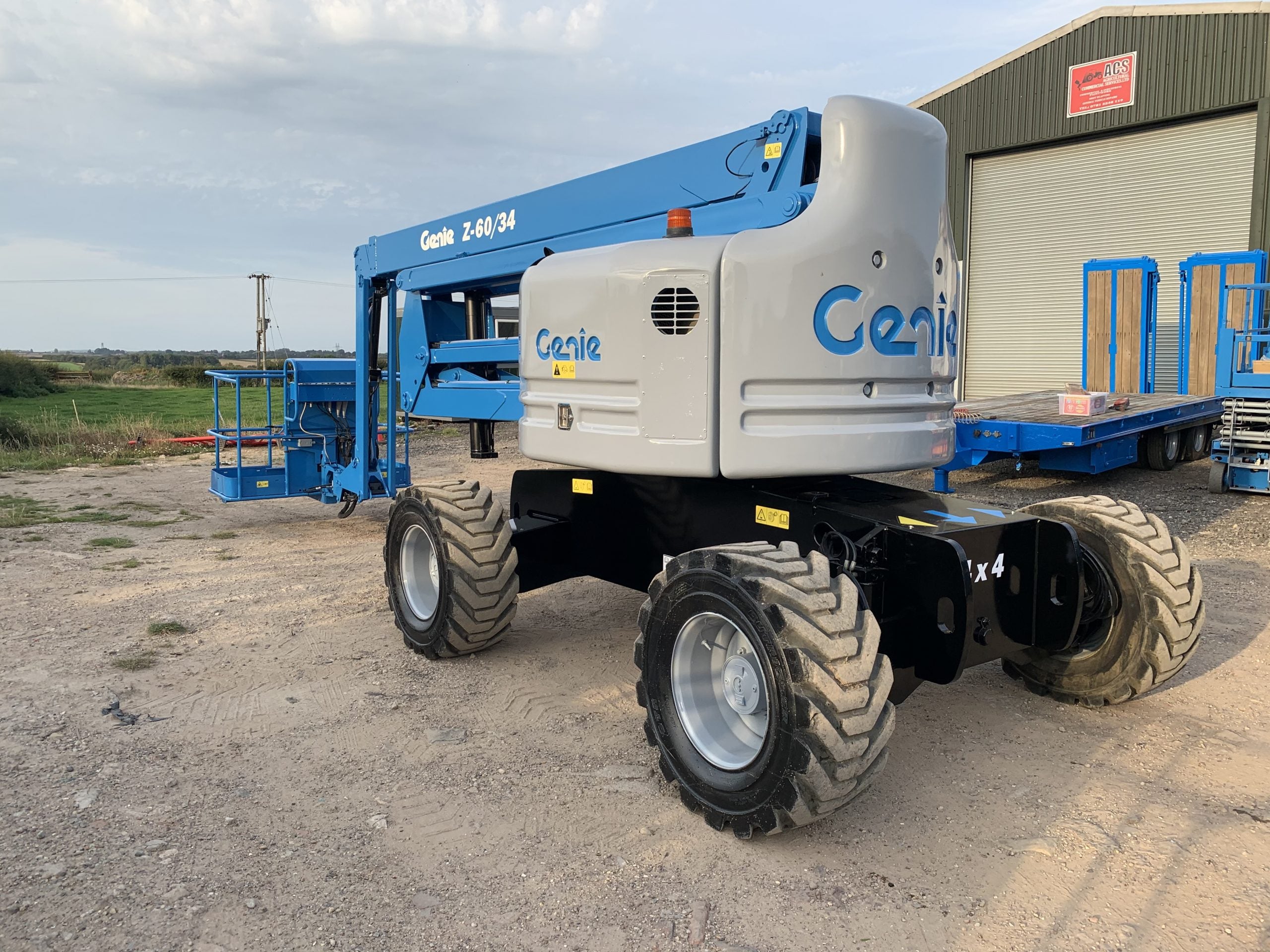

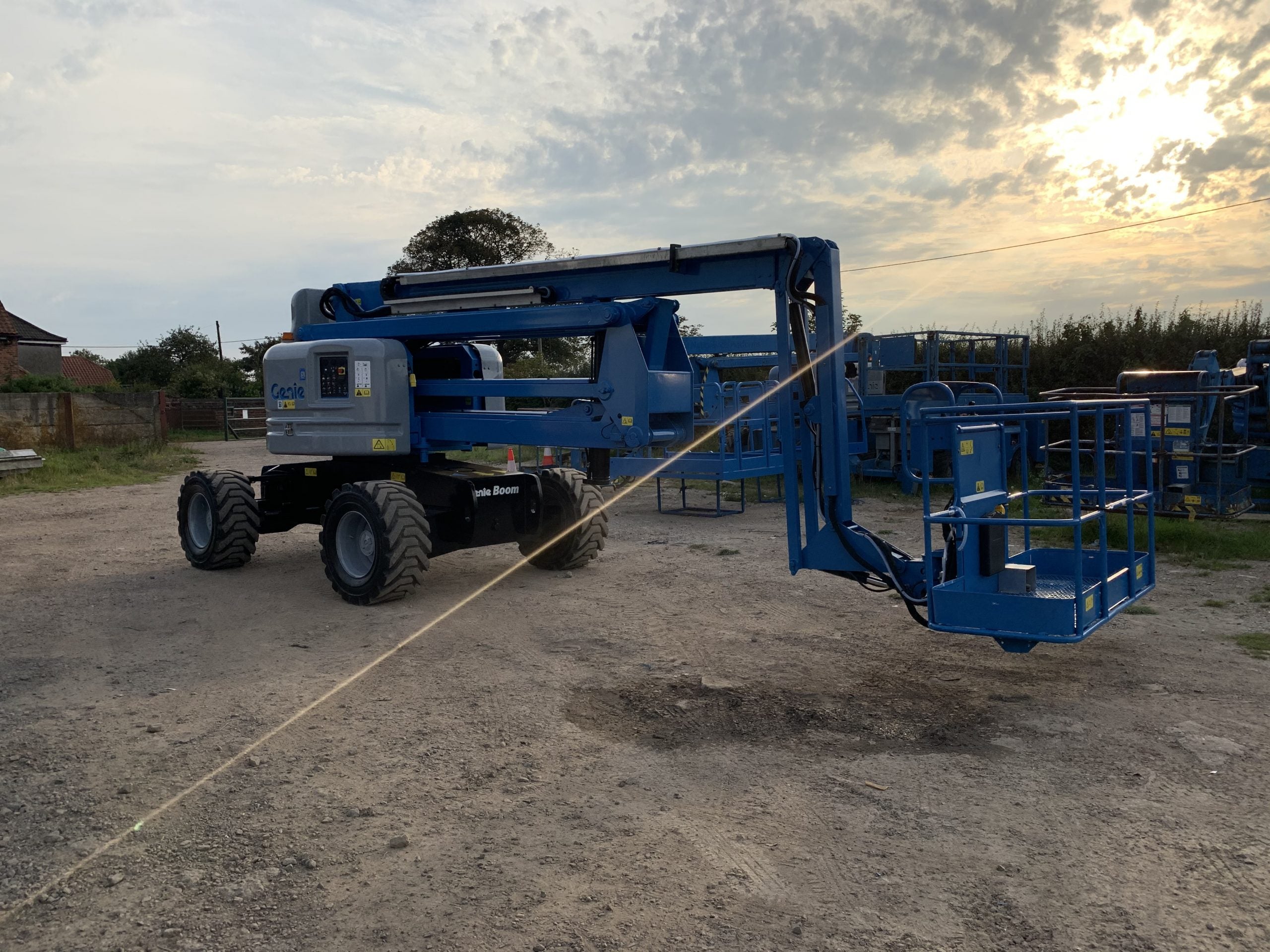

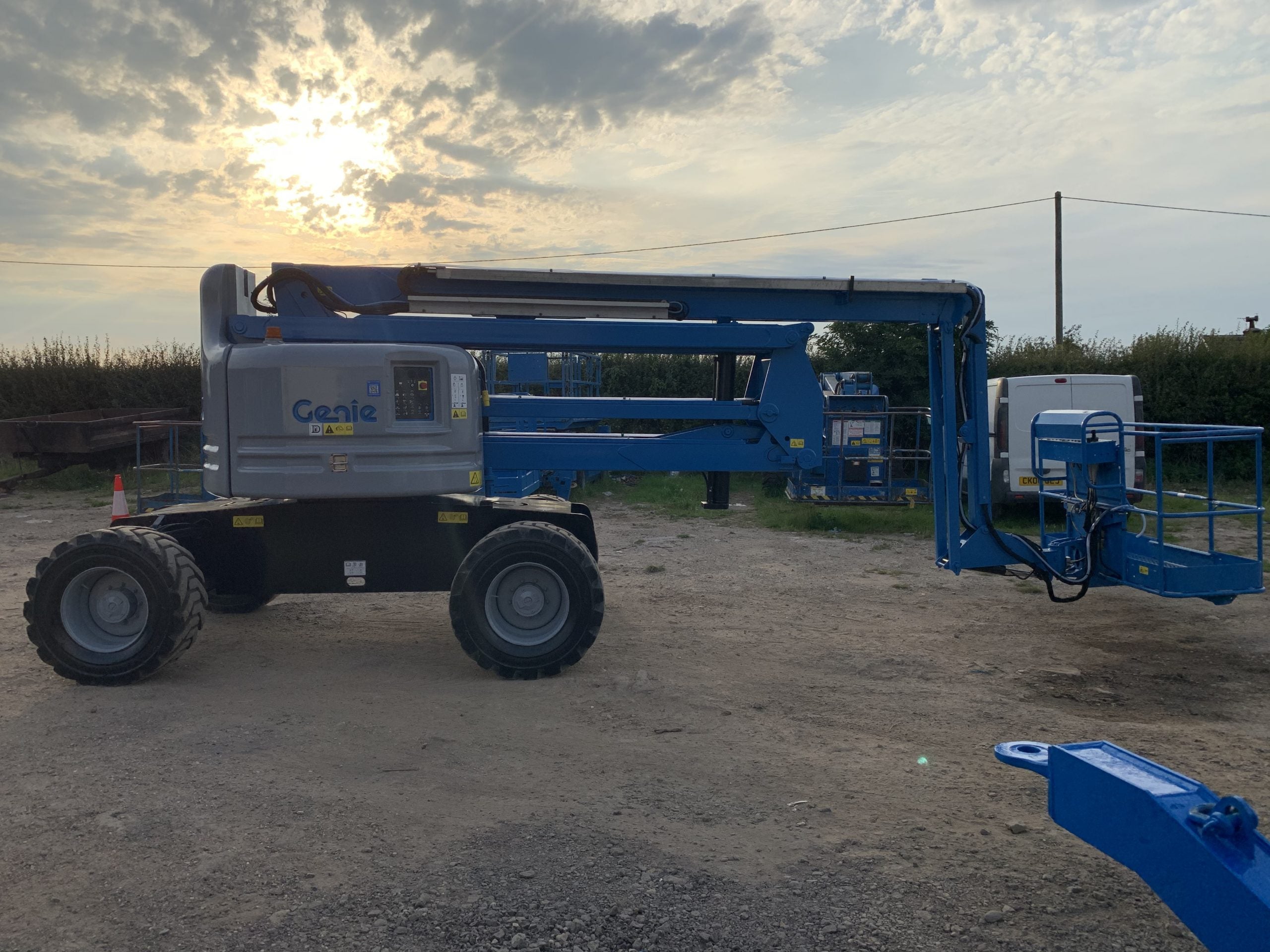

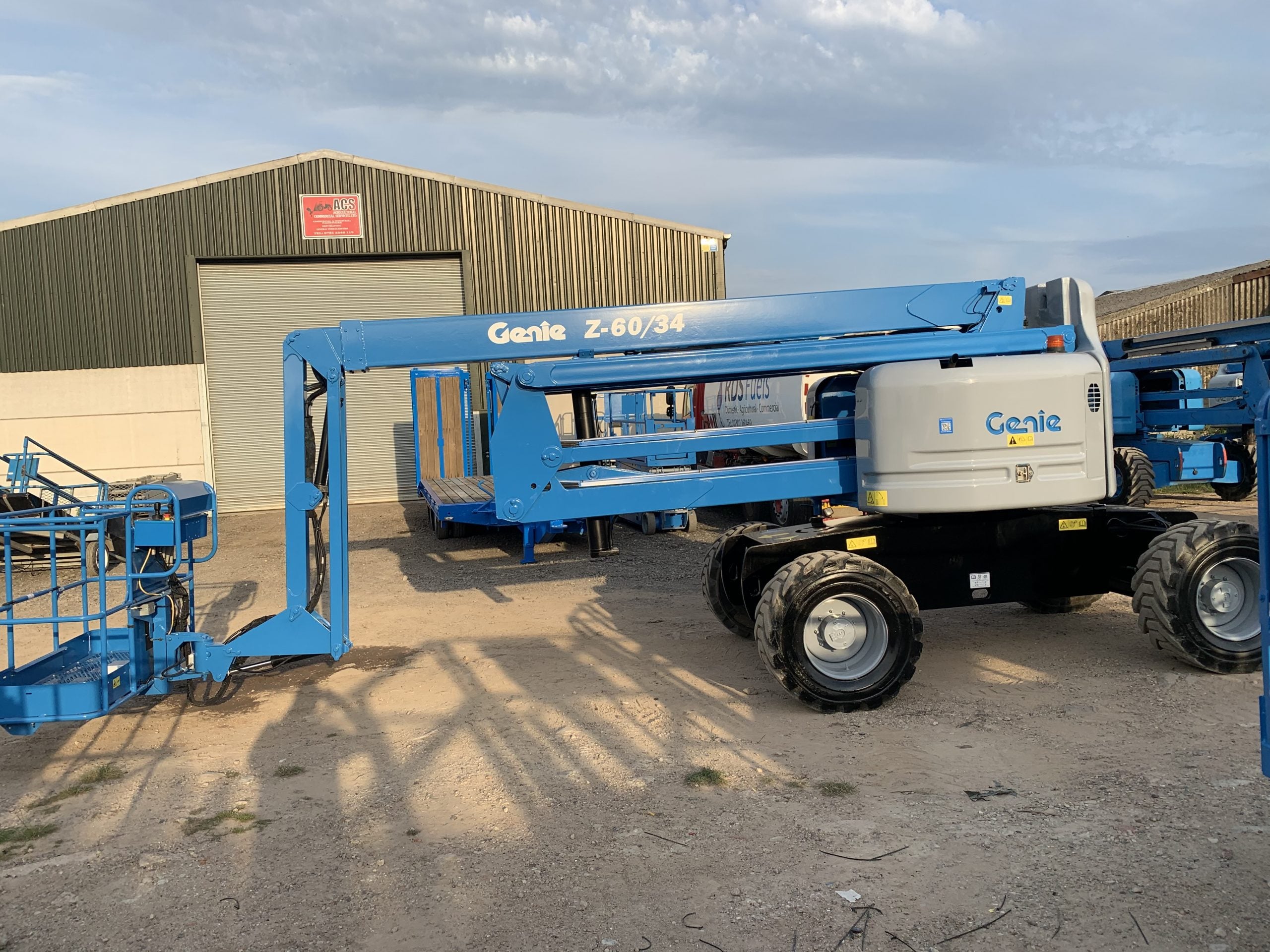

Genie Z60/34 For Sale | Articulated Boom | 2007
Genie Z60-34 For Sale Year 2006

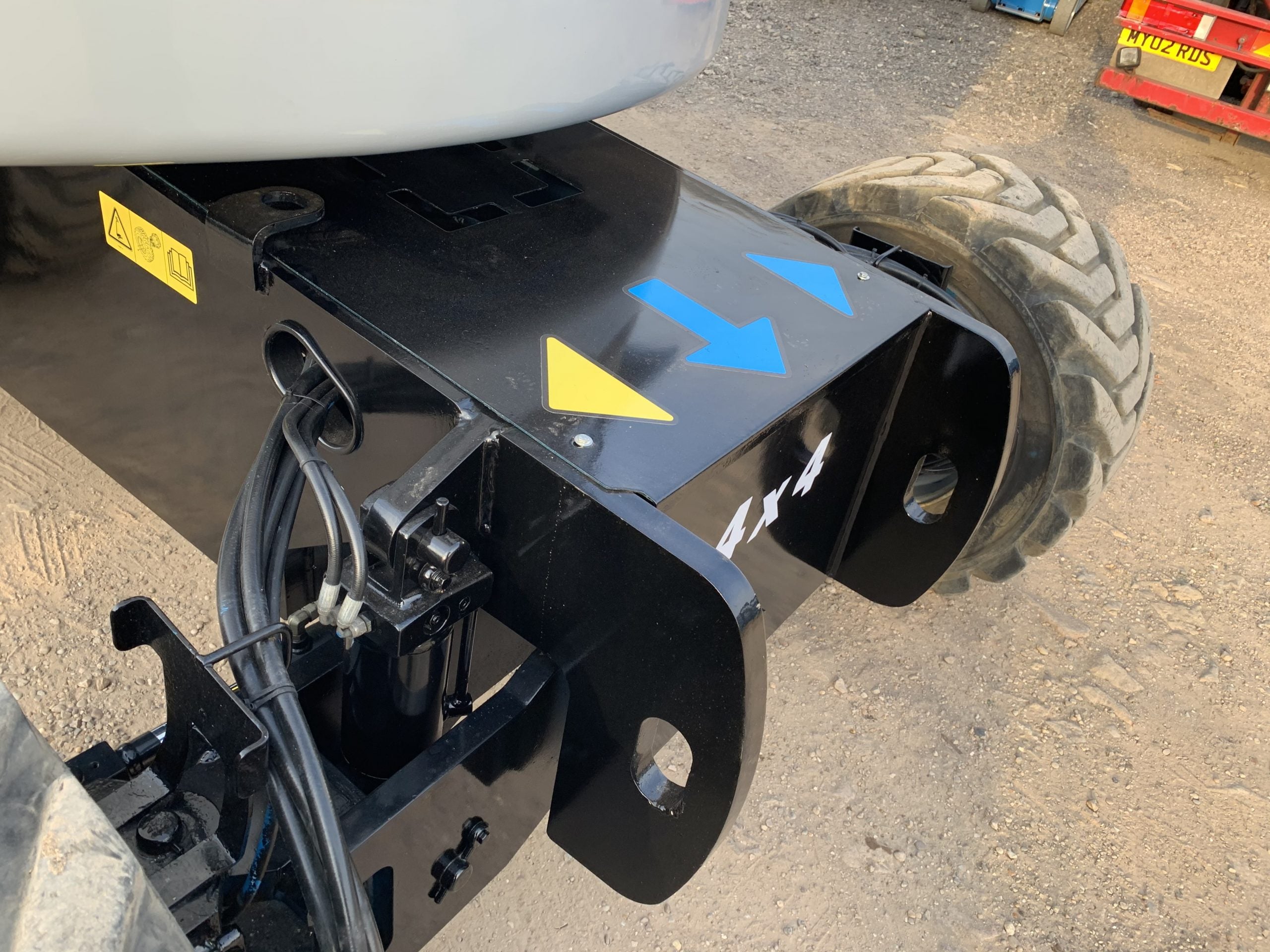

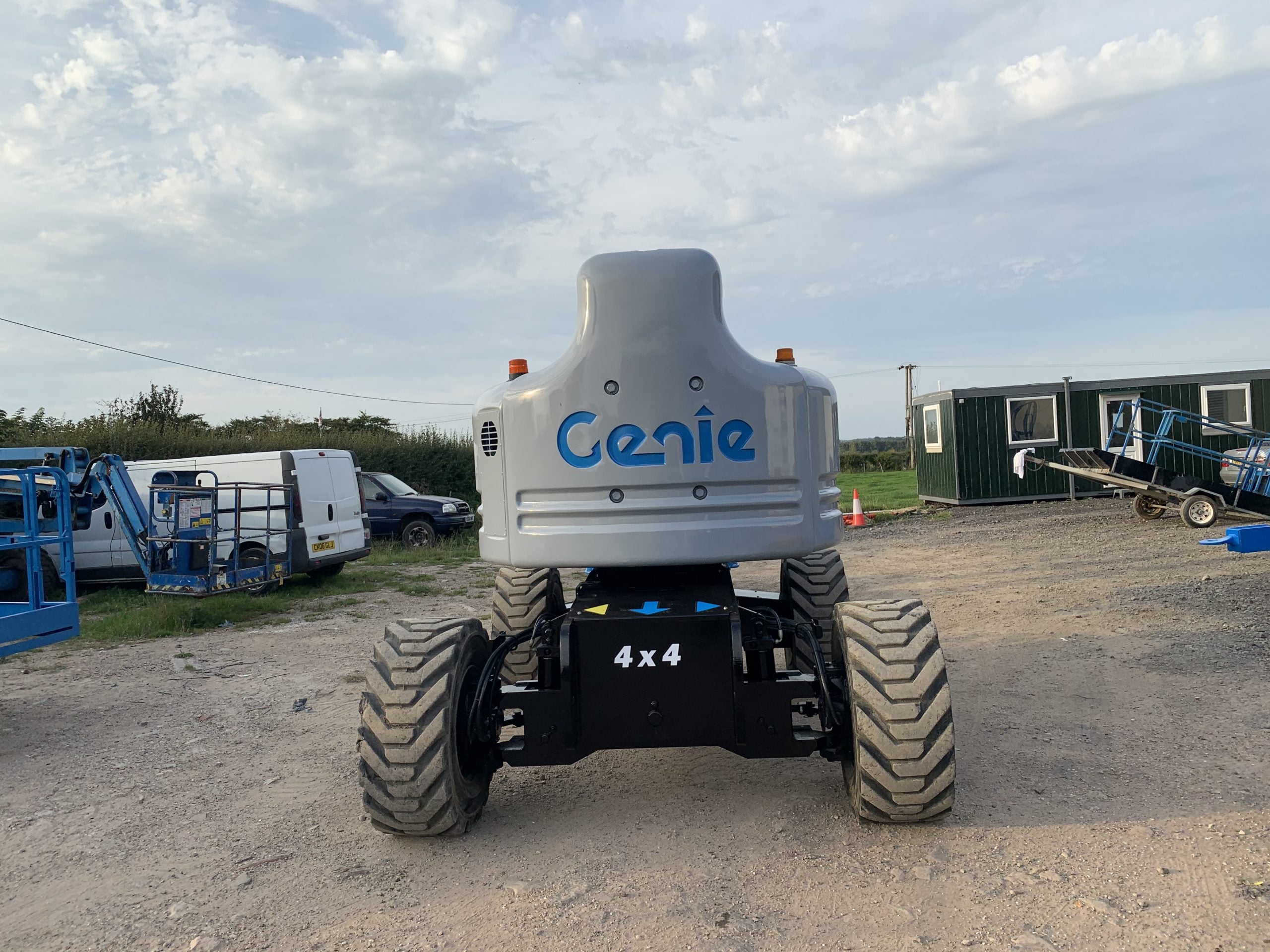

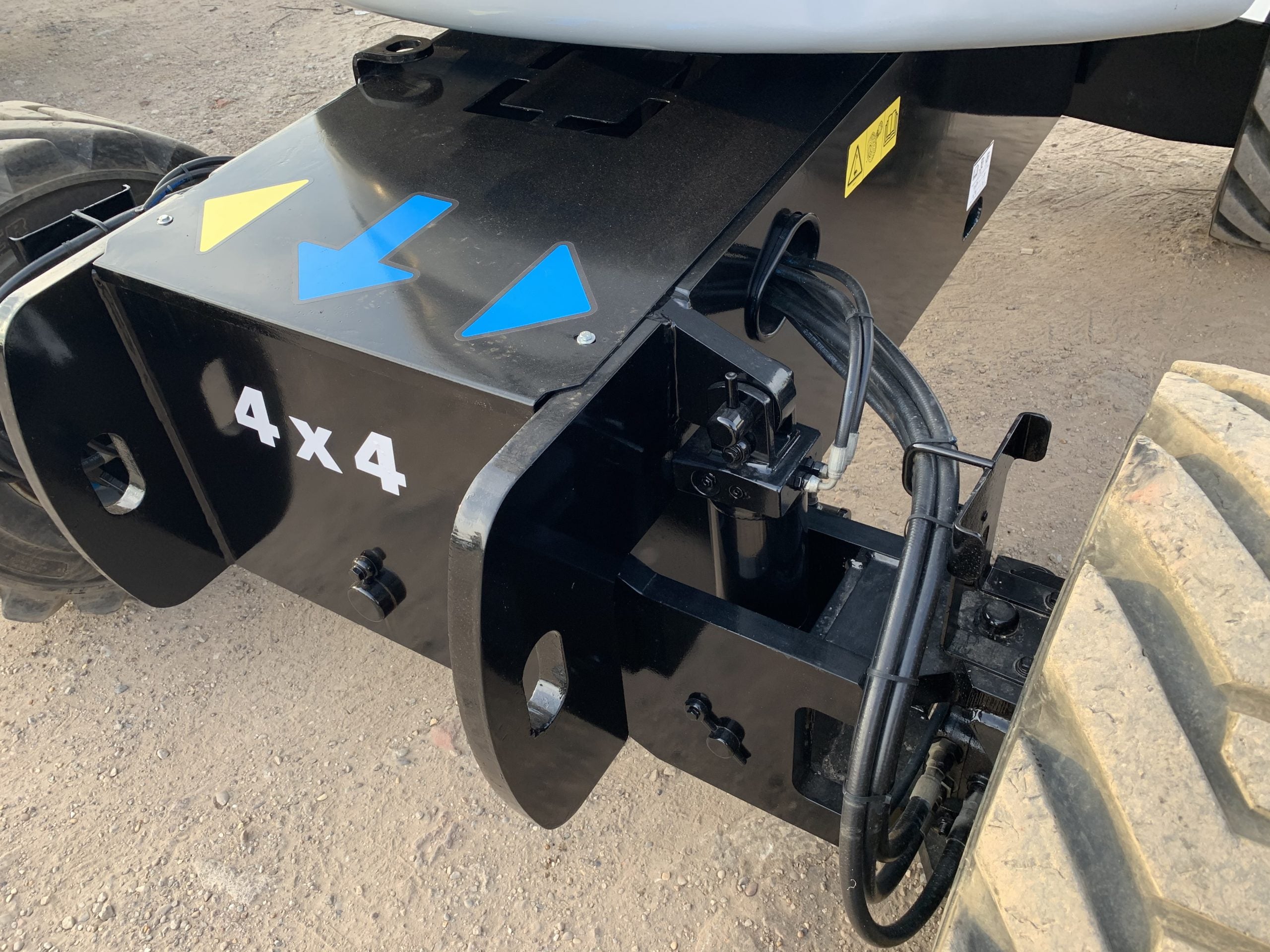

4wd
| MODEL | Z-60/34 | ||
| MEASUREMENTS | US | Metric | |
| Working height maximum* | 66 ft 4 in | 20.39 m | |
| Platform height maximum | 60 ft 4 in | 18.39 m | |
| Horizontal reach maximum | 36 ft 3 in | 11.05 m | |
| Up and over clearance maximum | 27 ft | 8.23 m | |

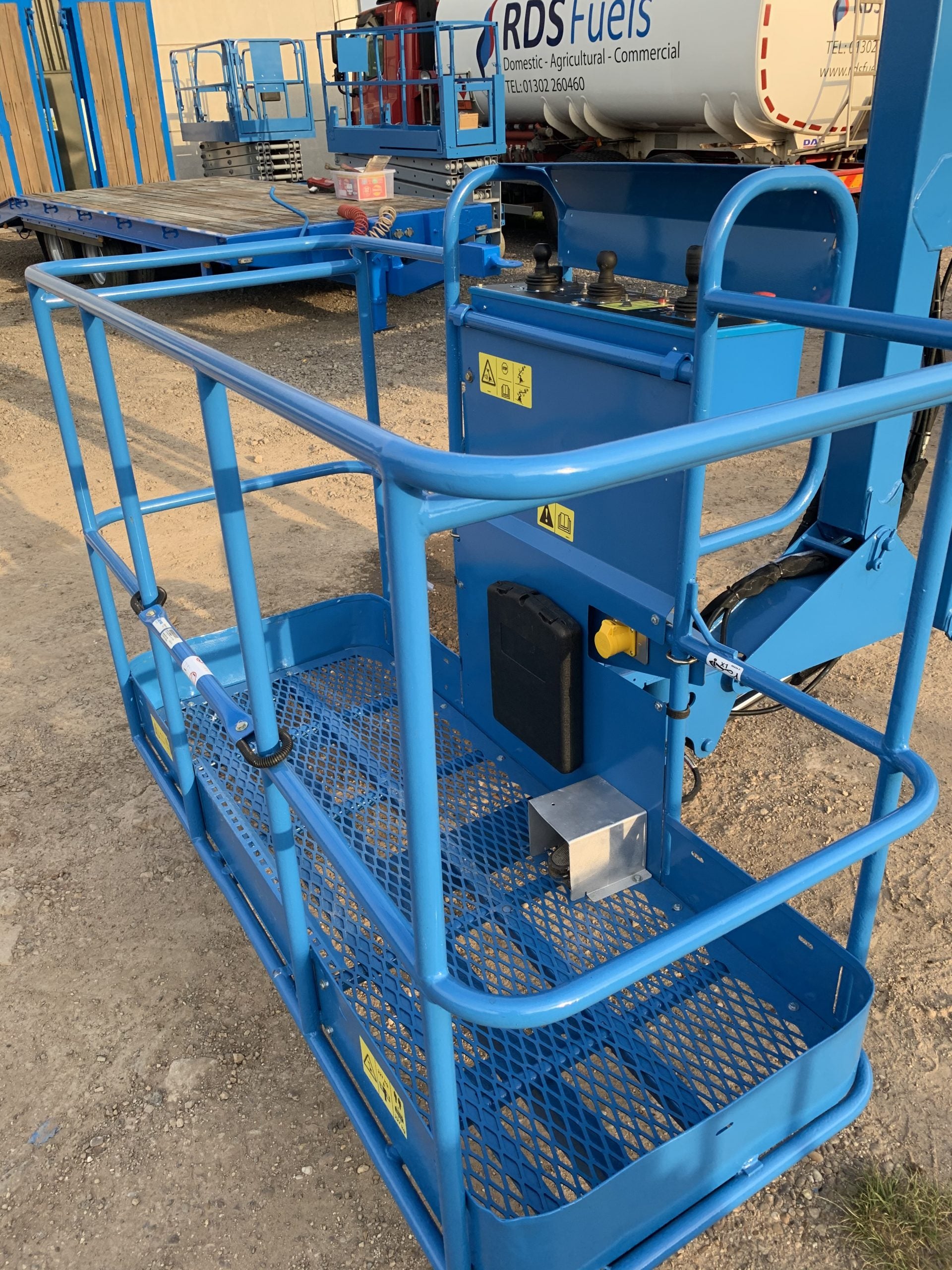

| A | Platform length - 8 ft / 6 ft model | 3 ft / 2 ft 6 in | .91 m /.76 m |
| B | Platform width - 8 ft / 6 ft model | 8 ft / 6 ft | 2.44 m / 1.83 m |
| C | Height - stowed | 8 ft 10 in | 2.69 m |
| D | Length - stowed | 26 ft 9 in | 8.15 m |
| E | Width | 8 ft 1 in | 2.46 m |
| F | Wheelbase | 8 ft 3 in | 2.51 m |
| G Ground clearance - center | 1 ft 4 in | .41 m | |
| PRODUCTIVITY | ||
| Lift capacity | 500 lbs | 227 kg |

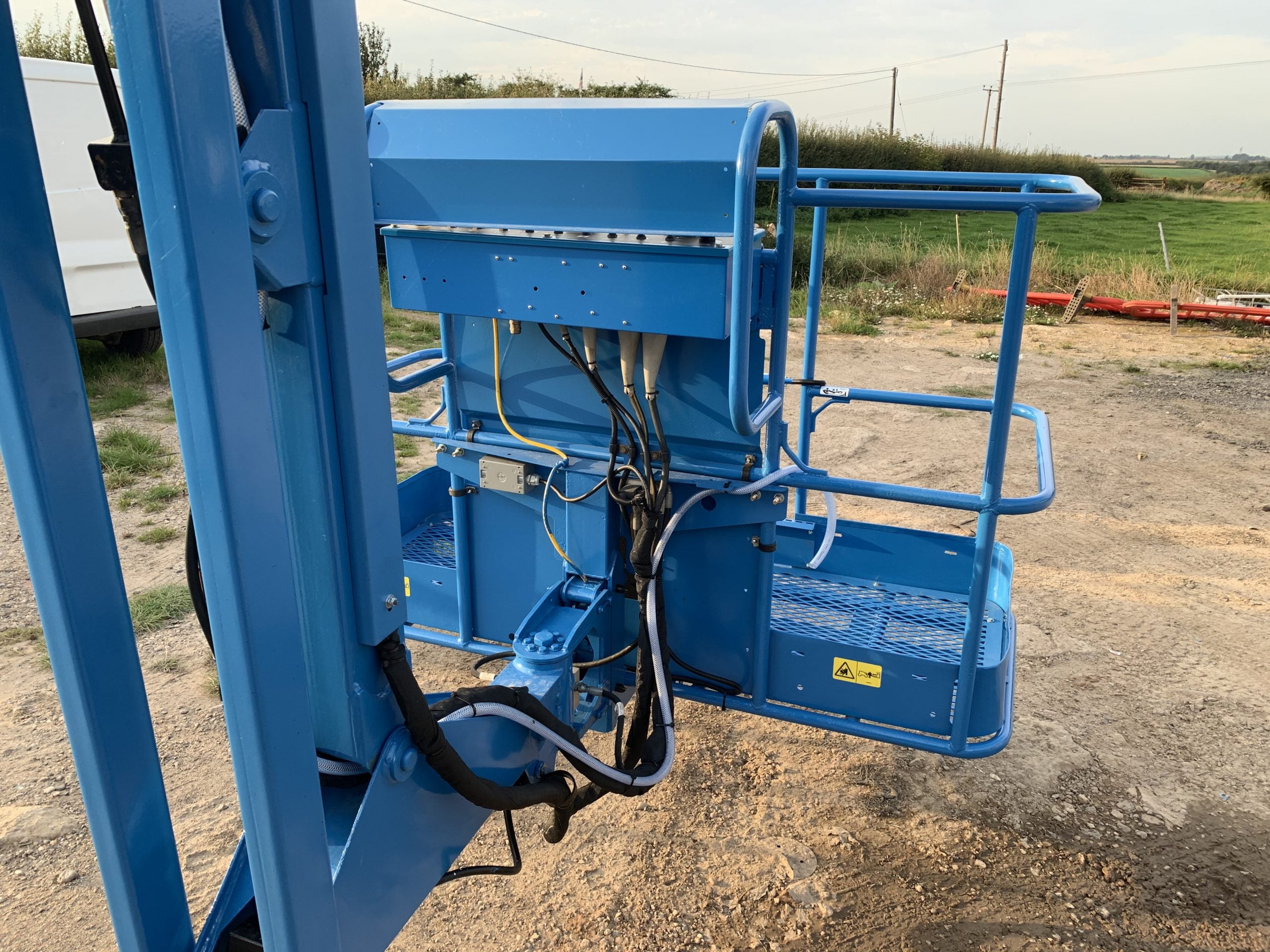

| Platform rotation | 180° | |
| Vertical jib rotation | 90° | |
| Turntable rotation | 360° continuous | |
| Turntable tailswing | zero | |
| Drive speed - stowed | 3.0 mph | 4.8 km/h |
| Drive speed - raised** | 0.68 mph | 1.1 km/h |
| Gradeability - 2WD - stowed*** | 25% | 25% |
| Gradeability - 4WD - stowed*** | 40% | 40% |
| Turning radius - inside | 10 ft | 3.04 m |
| Turning radius - outside | 19 ft 11 in | 6.07 m |

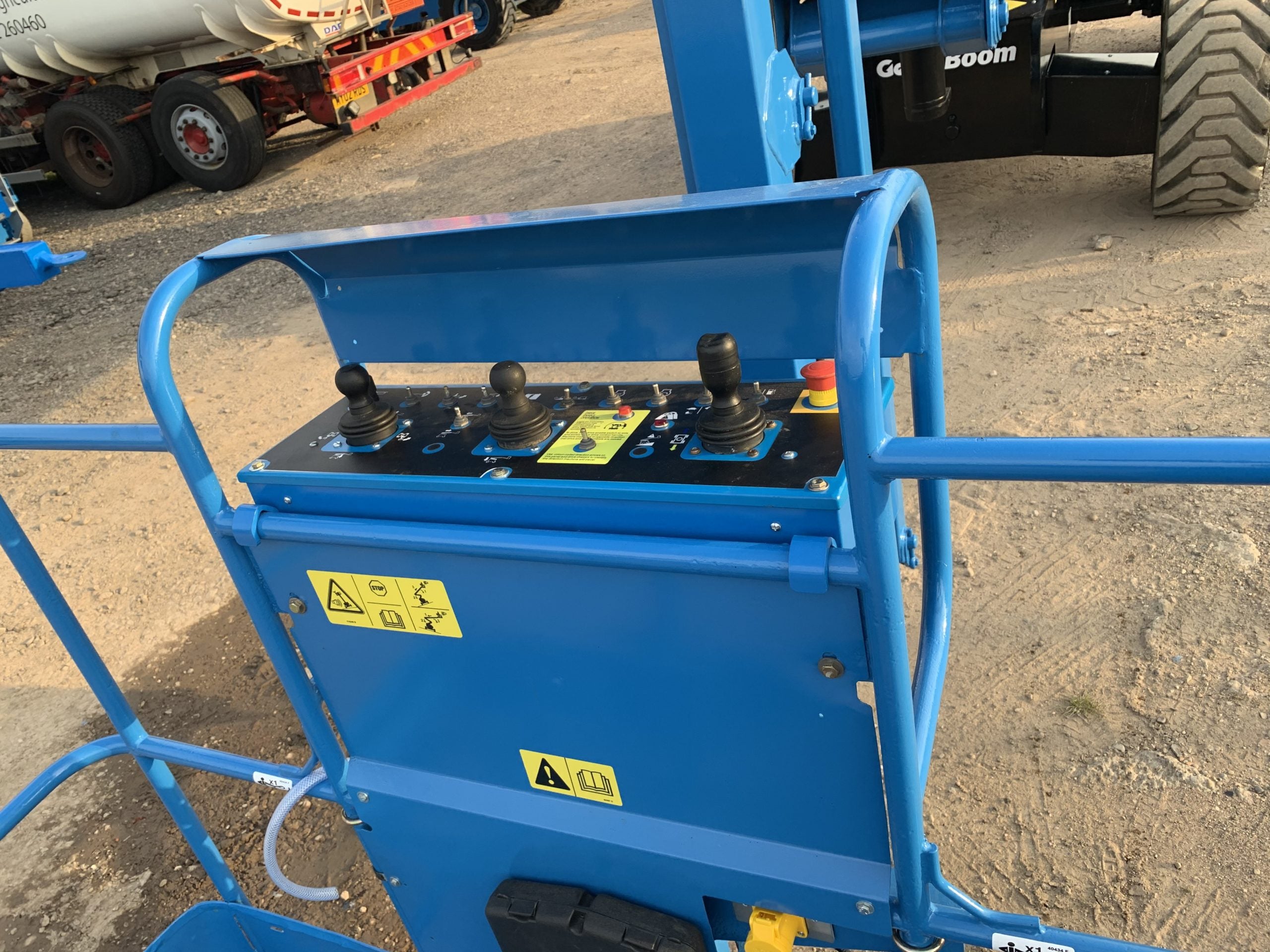

| Controls | 12V DC proportional | |
| Tires | 385/65 D19.5, 12 ply | |
