Genie

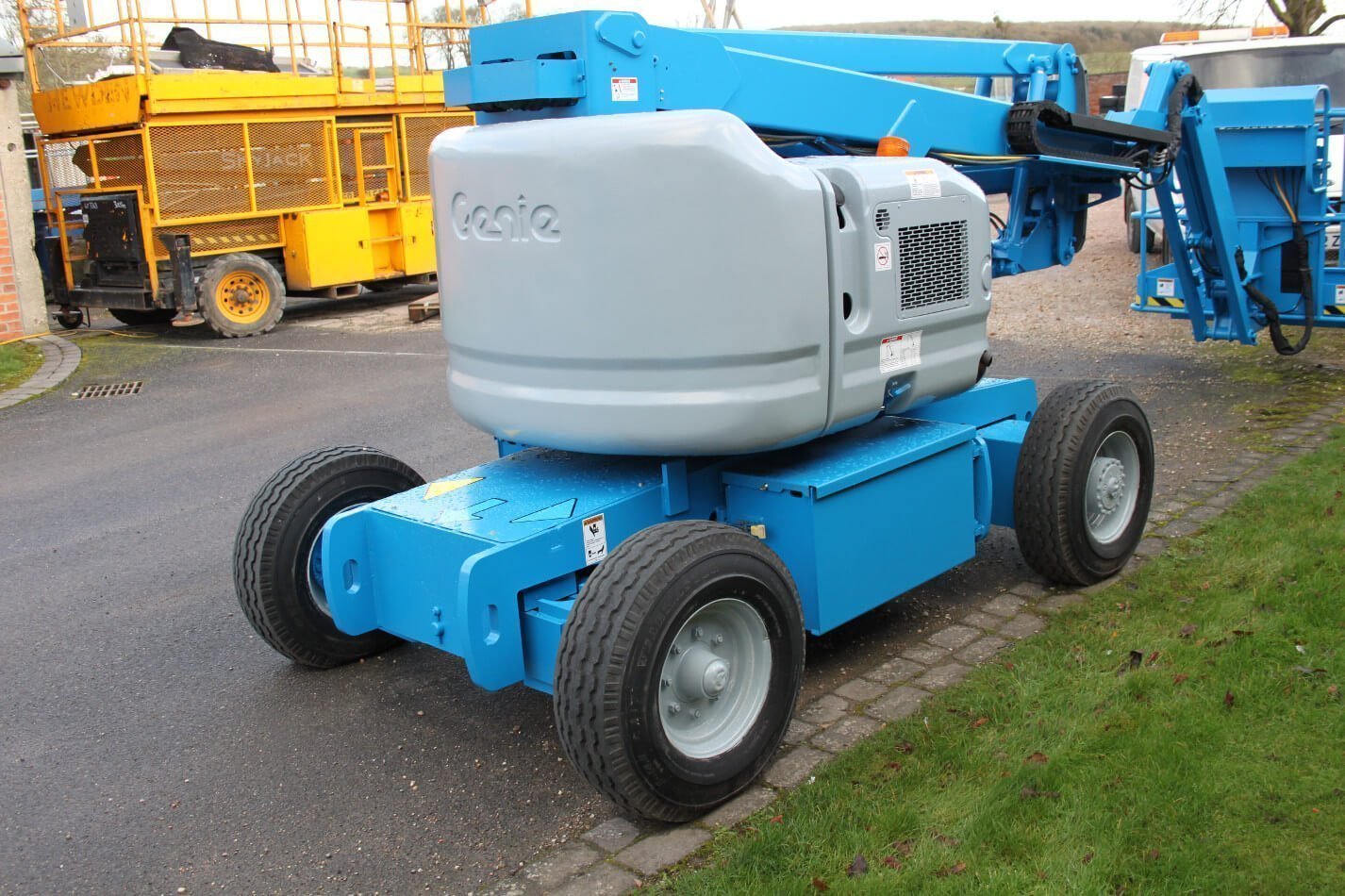

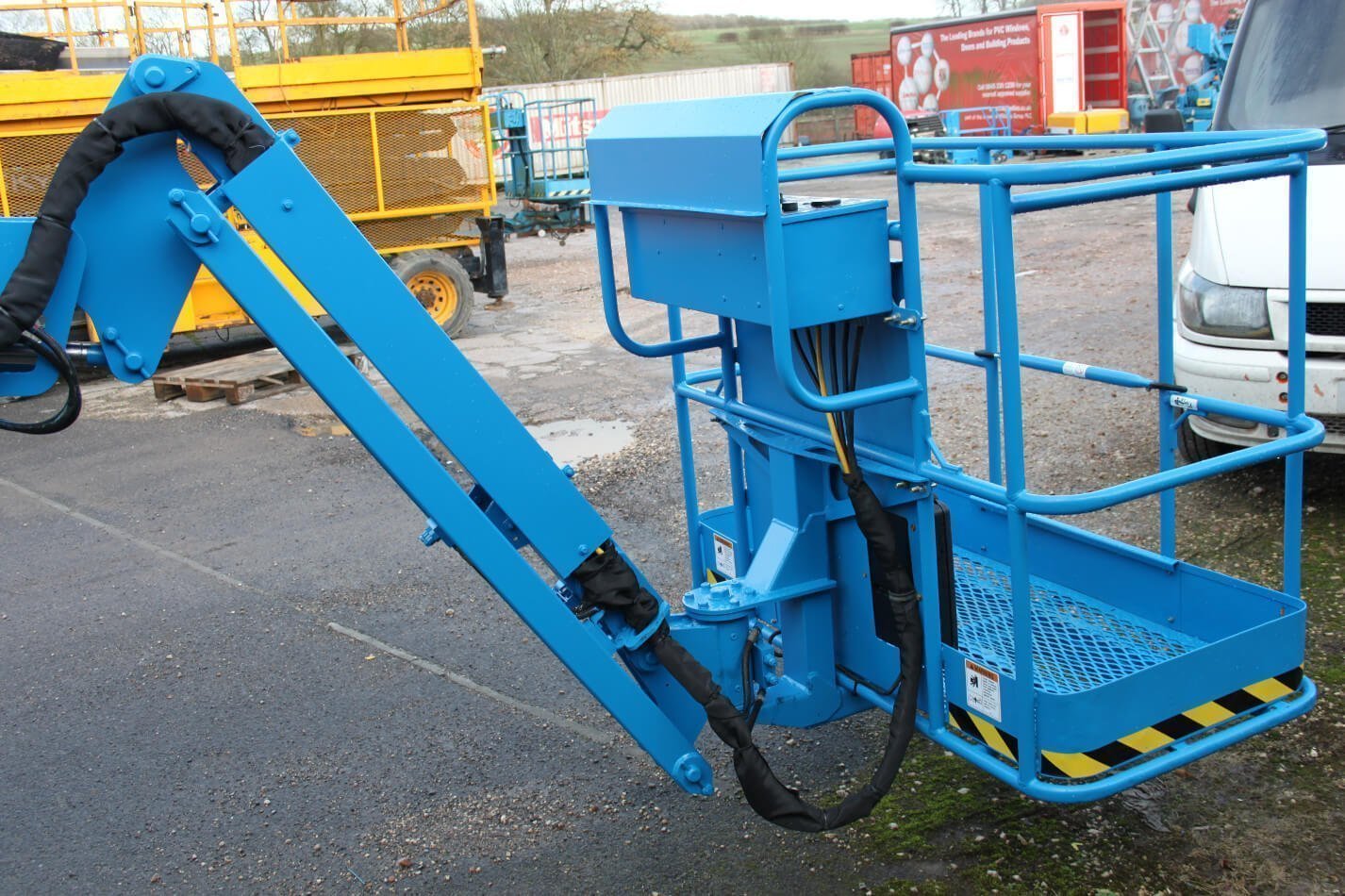

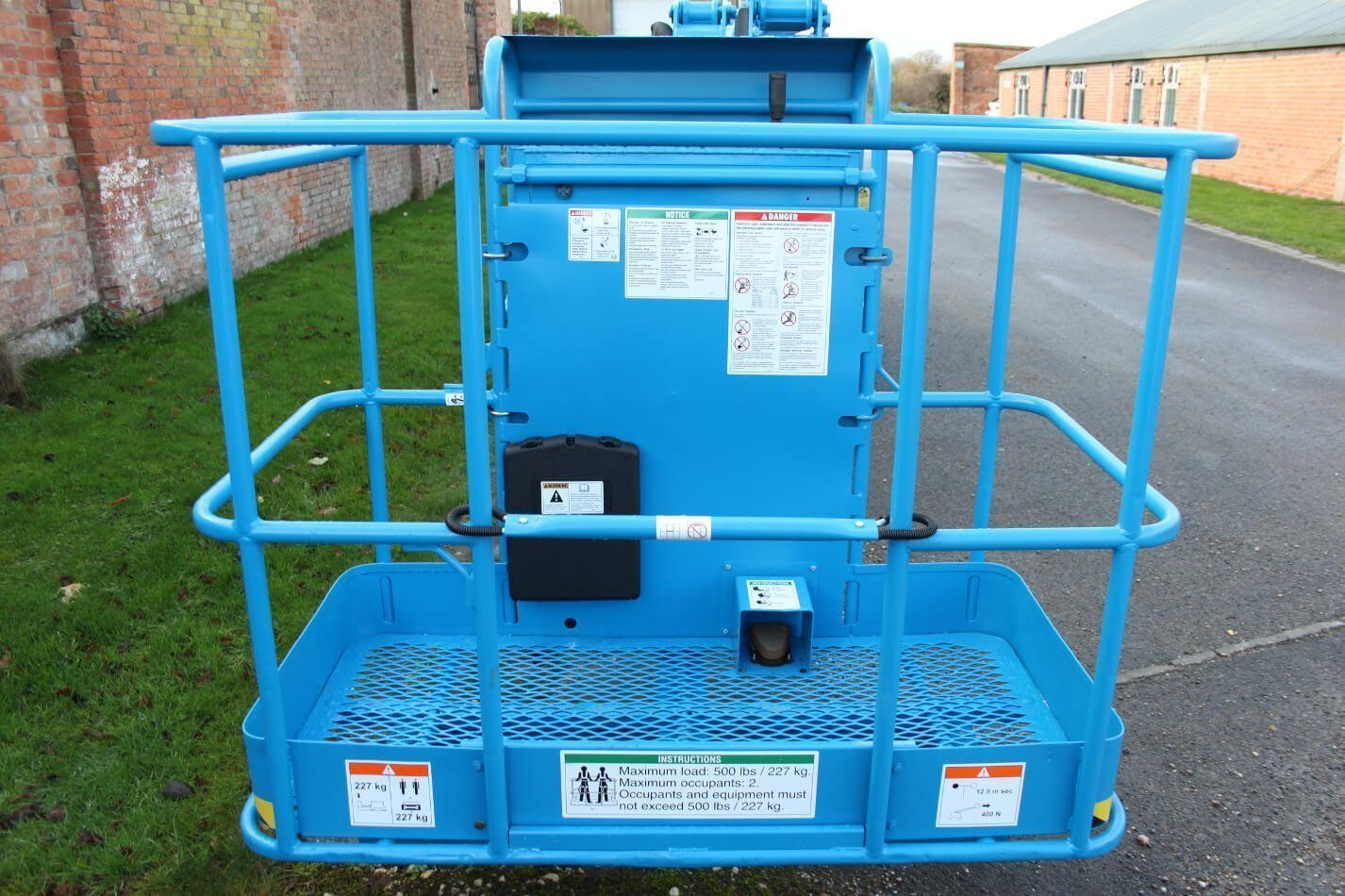

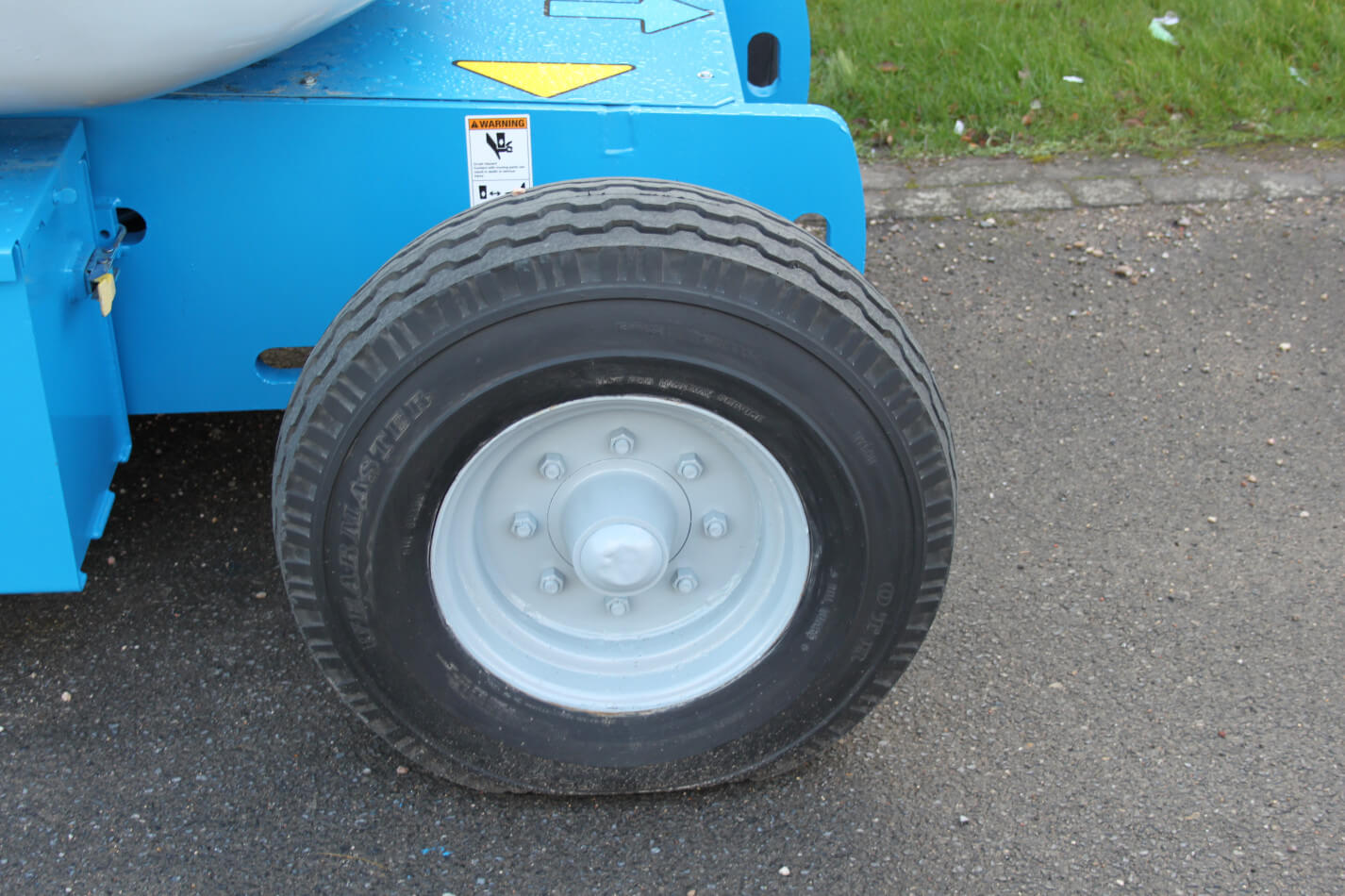

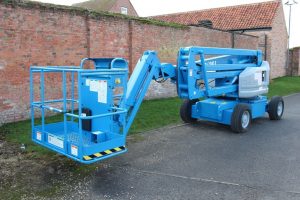

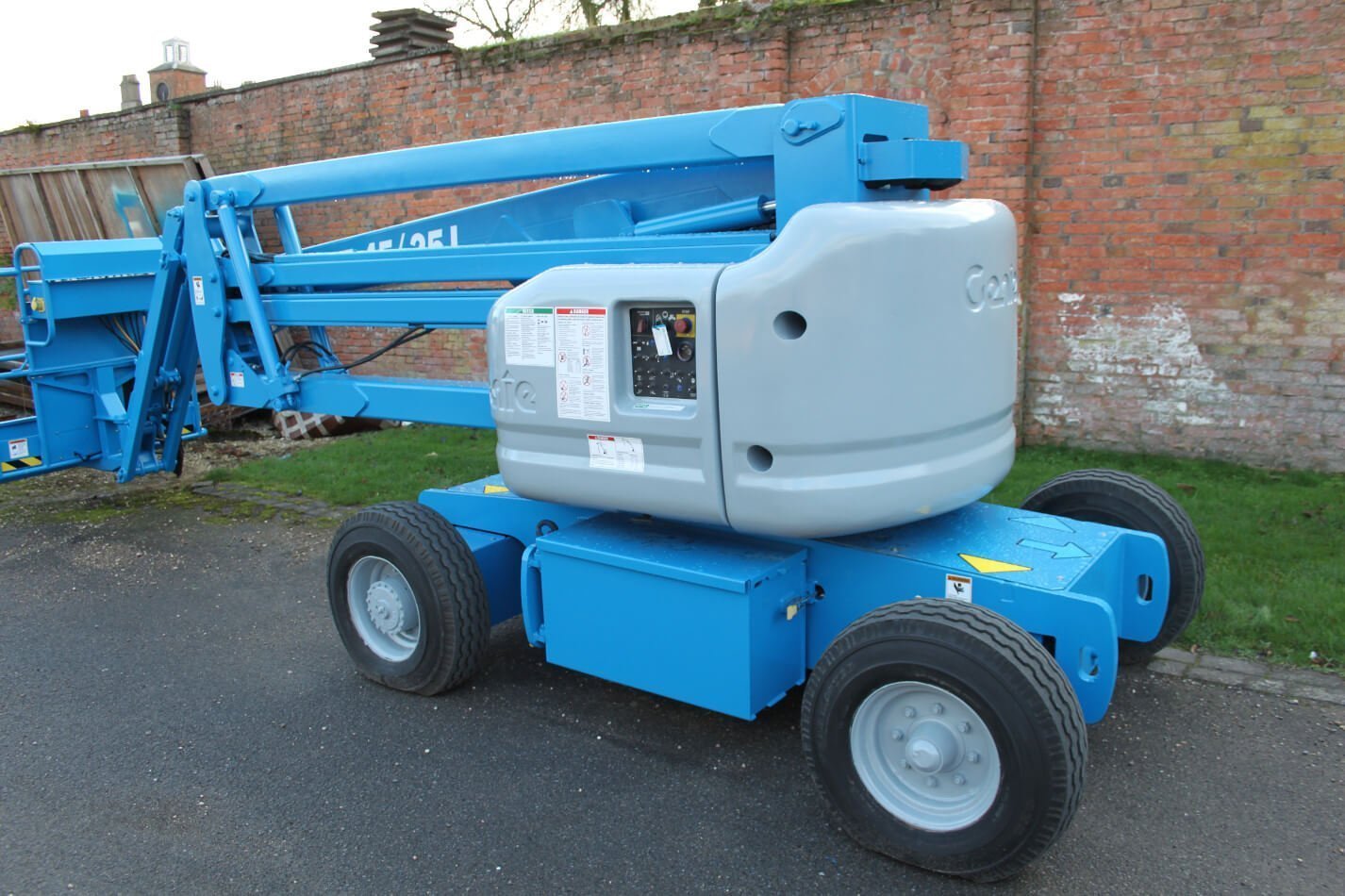

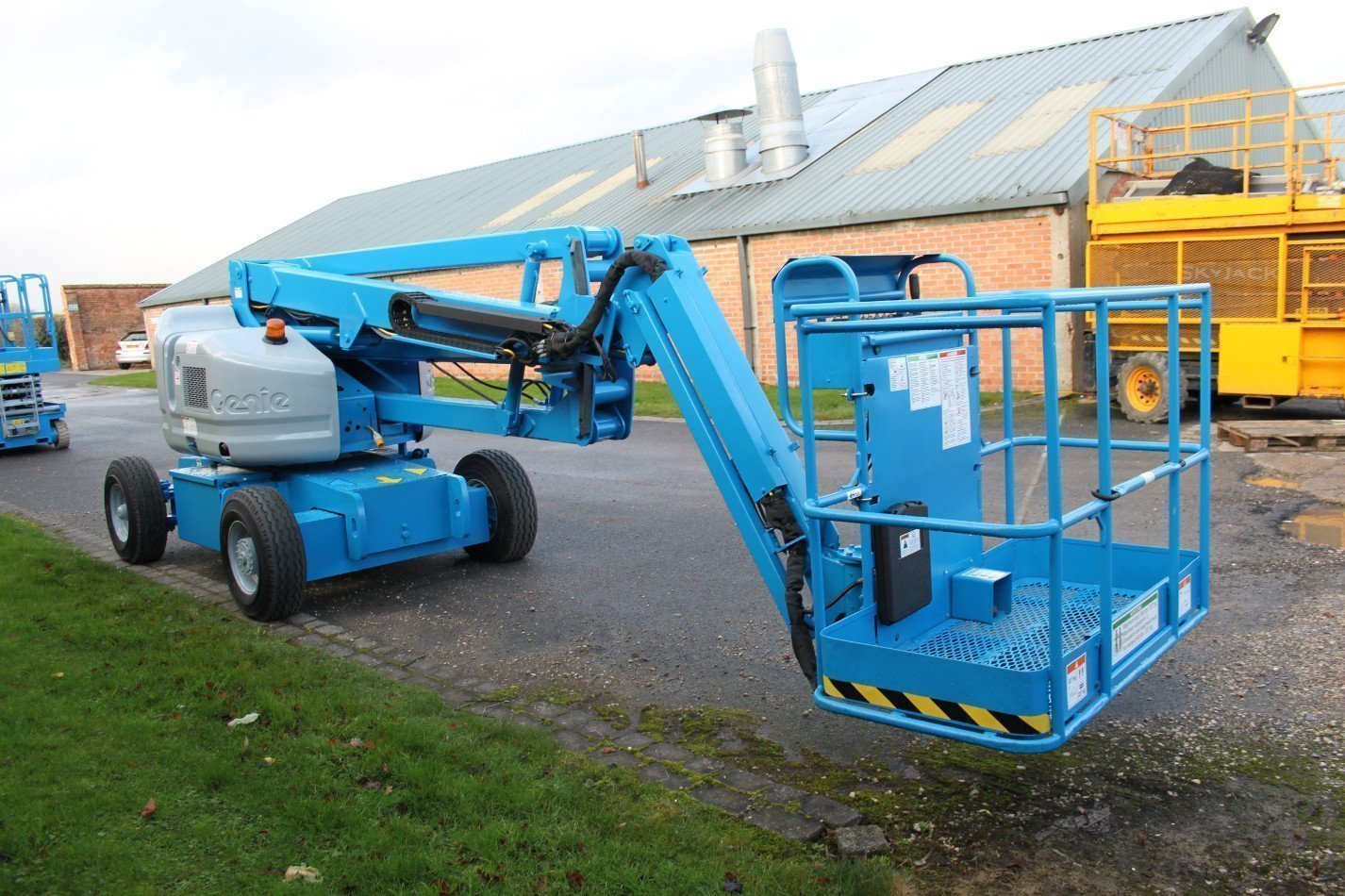

Genie Z45/25 Bi Energy Articulated Boom Manufactured 2014
Ideal for both outdoor and Indoor work this fully refurbished Genie Z45/25 Bi energy is in excellent condition.
This is one off two machine bi energy’s we currently have for sale. This machine have been refurbished to an excellent standard regardless of cost.
Call 0800 246 581
| Measurements | Metric | US | |||||
| Working height maximum* | 15.94 m | 51 ft 9 in | |||||
| Platform height maximum | 13.94 m | 45 ft 9 in | |||||
| Horizontal reach maximum | 7.65 m | 25 ft 1 in | |||||
| Up and over clearance maximum | 7.24 m | 23 ft 9 in | |||||
| A | Platform length | 0.76 m | 2 ft 6 in | ||||
| B | Platform width | 1.83 m | 6 ft | ||||
| C | Height - stowed | 2.00 m | 6 ft 7 in | ||||
| D | Length - stowed | 6.83 m | 22 ft 5 in | ||||
| E | Width | 1.79 m | 5 ft 10.3 in | ||||
| F | Wheelbase | 2.03 m | 6 ft 8 in | ||||
| G | Ground clearance - center | 0.24 m | 9.5 in | ||||
| Productivity | |||||||
| Lift capacity | 227 kg | 500 lbs | |||||
| Platform rotation | 160° | 160° | |||||
| Vertical jib rotation | 135° | 135° | |||||
| Turntable rotation 355° non-continuous | |||||||
| Turntable tailswing | zero | zero | |||||
| Drive speed - stowed | 4.8 km/h | 3.0 mph | |||||
| Drive speed - raised** | 1.0 km/h | 0.61 mph | |||||
| Gradeability - stowed*** | 30% | 30% | |||||
| Turning radius - inside | 1.8 m | 6 ft | |||||
| Turning radius - outside | 4.27 m | 14 ft | |||||
